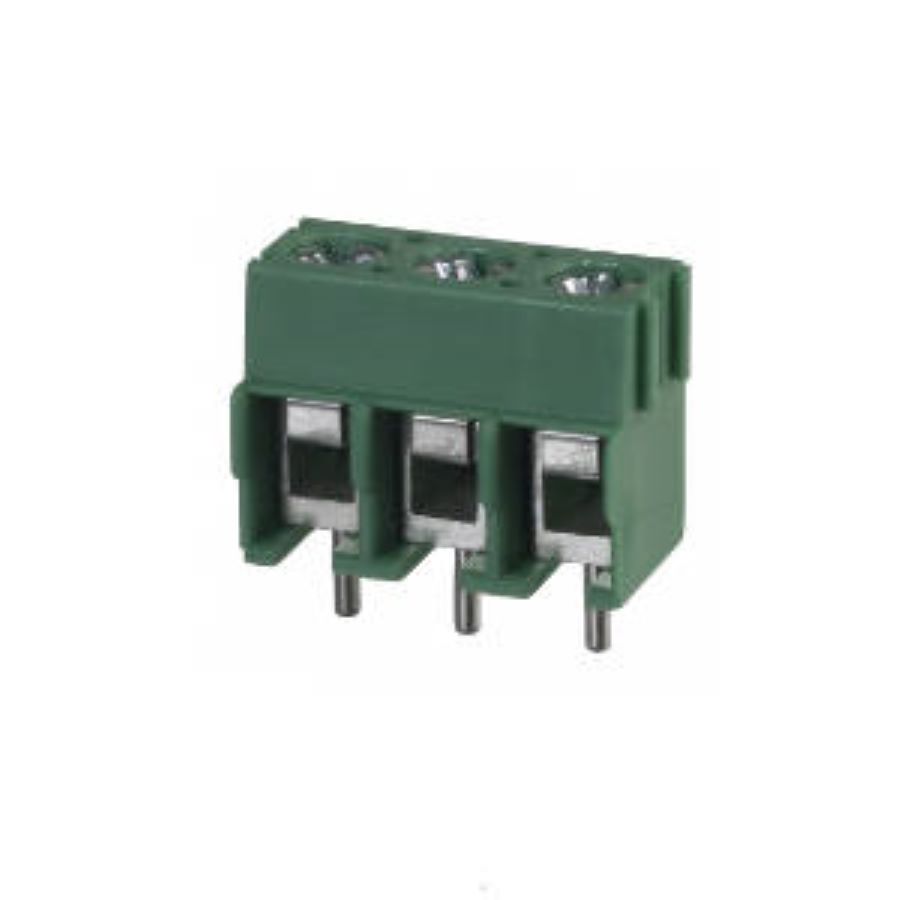

1935174
Manufacturer:
Phoenix Contact
Mfr.Part #:
1935174
Datasheet:
Description:
Terminal Blocks Through Hole 3 5 mm 10 A 300 V 26 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 320 V |
| Length | 9 mm |
| Width | 15 mm |
| Termination | Screw |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Height | 11.3 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 9 mm |
| Thickness | 10 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Weight | 2.850006 g |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper, Tin |
| Pitch | 5 mm |
| Current | 18 A |
| Current Rating | 10 A |
| Max Current Rating | 16 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CB, UL, VDE |
| Number of Circuits | 3 |
| Orientation | Horizontal with Board |
| Max Supply Voltage | 250 V |
| Color | Green |
| Number of Contacts | 3 |
| Ambient Temperature Range High | 100 °C |
| Number of Poles | 3 |
| Wire/Cable Gauge | 14 AWG |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Housing Material | Polyamide |
| Number of Positions Per Level | 3 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 12 AWG |
| Housing Color | Green |
| Stripping Length | 5 mm |
| Connection Method | Screw |
| Wire Gauge Range | 26 AWG to 12 AWG |
Stock: 151
Distributors
pcbx
pcbxUnit Price$0.77376
Ext.Price$0.77376
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.77376 | $0.77376 |
| 10 | $0.62938 | $6.29380 |
| 25 | $0.58807 | $14.70175 |
| 50 | $0.54947 | $27.47350 |
| 100 | $0.51341 | $51.34100 |
| 300 | $0.47971 | $143.91300 |
| 500 | $0.44824 | $224.12000 |
| 1000 | $0.42593 | $425.93000 |
